Overview¶

Packages enable:

• Rapid dataspace setup with pre-configured domain vocabularies
• Sharing and reusing common vocabulary definitions
• Custom rendering for vocabulary-specific resources
• Modular extension of dataspace functionality

Package structure¶

Each package is a descriptor document with two files under it:

Descriptor — the lds:Package resource

The document the package URI resolves to, describing the package itself. In the LinkedDataHub-Apps repository it is the RDF file beside the package's folder, so editor/taxonomy.ttl is the document published at editor/taxonomy/ — see Package metadata.

ns.ttl — Package ontology

An RDF ontology file that imports the external vocabulary using owl:imports and attaches views to properties using ldh:view (forward relationships) or ldh:inverseView (inverse relationships). Views are typically ldh:View resources with SPARQL queries that render related data for property values.

XSLT stylesheet — named by ac:stylesheet

XSLT transformation file with templates that override default rendering using system modes like ac:*, ldh:* and xhtml:*. See the Stylesheets reference for details on XSLT customization.

Package files are organized in the LinkedDataHub-Apps repository, where the directory path is the package URI — a package under packages/a/b/ is published at https://packages.linkeddatahub.com/a/b/, so a path carries as many segments as the grouping needs:

packages/
├── root.ttl           # the registry's own document
├── editor.ttl         # the "Editors" container document
└── editor/
    ├── taxonomy.ttl   # the package descriptor, published at editor/taxonomy/
    └── taxonomy/
        ├── ns.ttl     # ontology with views, published at editor/taxonomy/ns/
        └── skos.xsl   # XSLT stylesheet, uploaded into the package document

The registry is published with ldh push, which is what pairs each name.ttl with the name/ folder holding its children — so the ontology's document URL is ns/, not ns.ttl.

The ontology is always ns.ttl; the stylesheet filename is not a convention, it is whatever the package's ac:stylesheet names. The taxonomy editor is named for what it does and its stylesheet for the vocabulary it speaks.

Package metadata¶

Package metadata is published as Linked Data that resolves from the package URI (e.g. https://packages.linkeddatahub.com/editor/taxonomy/#this). A package descriptor is an instance of the lds:Package class with these properties:

dct:title

Human-readable package name

dct:description

Package description and purpose

dct:creator

Who publishes the package (optional)

lds:ontology

The package ontology URI (LinkedDataHub dataspaces vocabulary)

ac:stylesheet

The package stylesheet URI (AtomGraph Client vocabulary). Not written by hand in the registry: the stylesheet is uploaded when the package is published, and the reference is added afterwards, naming that upload — so a changed stylesheet gets a new URI instead of changing under the dataspaces that already imported it.

Example package metadata:

@prefix lds:  <https://w3id.org/atomgraph/linkeddatahub/dataspaces#> .
@prefix dct:  <http://purl.org/dc/terms/> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
@prefix dh:   <https://w3id.org/atomgraph/linkeddatahub/document-hierarchy#> .

<> a dh:Container ;
    dct:title "Taxonomy" ;
    foaf:primaryTopic <#this> .

<#this> a lds:Package ;
    dct:title "Taxonomy Editor" ;
    dct:description "Taxonomy editing on SKOS, with custom templates" ;
    dct:creator <https://atomgraph.com/#company> ;
    lds:ontology <ns/#> .

The URIs are relative to the descriptor's own document, so the registry serves the ontology it names and the package carries no reference to where its sources are kept.

Package ontology¶

The package ontology file describes the document the registry serves it as, and the ontology inside that document in two parts:

Vocabulary import¶

Imports the external vocabulary using owl:imports. See the Ontologies reference for ontology management details.

<> a dh:Item ;
    dct:title "Taxonomy Editor ontology" ;
    foaf:primaryTopic <#> .

<#> a owl:Ontology ;
    owl:imports <http://www.w3.org/2004/02/skos/core> .

Property views¶

SPARQL-based views attached to properties from the imported vocabulary:

skos:narrower ldh:view ns:NarrowerConcepts .

ns:NarrowerConcepts a ldh:View ;
    dct:title "Narrower concepts" ;
    spin:query ns:SelectNarrowerConcepts .

ns:SelectNarrowerConcepts a sp:Select ;
    sp:text """SELECT DISTINCT ?narrower
    WHERE { GRAPH ?graph { $about skos:narrower ?narrower } }
    ORDER BY ?narrower""" .

A view attached with ldh:view is rendered on every resource typed with the property's rdfs:domain, one attached with ldh:inverseView on every resource typed with its rdfs:range — whether or not the resource has the property, so a property without a domain or range renders no view. $about in the query is the resource the view is rendered on. A package's views work like the ones a dataspace declares in its own ontology — see Views in the ontologies reference.

Package stylesheet¶

XSLT templates in the platform's open modes, specialising the rendering of the package's own vocabulary:

<!-- The hierarchy predicates render as the concept tree, not as statement rows -->
<xsl:template match="skos:narrower | skos:broader | skos:related | skos:member" mode="ac:PropertyEditor"/>

<!-- Fill the column beside the content body on a concept scheme's document -->
<xsl:template match="rdf:RDF[...]" mode="ldh:ContentColumn">
    <xsl:param name="mode" as="xs:anyURI?"/>
    <!-- the concept tree -->
</xsl:template>

A package stylesheet is composed into the platform's import tree right after hooks.xsl, the module that declares the open modes and their generic fallbacks, and below everything else. Import precedence decides what a package can do: its rule for a node in an open mode outranks the fallback whatever the priorities, and it cannot contradict a sealed rule for the same node — a component mode, a typed rule, a global variable, named template or function — since that rule outranks the package. An open mode is a leaf: it renders or contributes for one node and carries no control flow. The open modes are:

• ldh:TreeNode — one tree node; replace the default renderer, or decorate it with xsl:next-match
• ac:PropertyEditor — one resource's property list, or one statement row; replace or decorate, and an empty rule hides
• ldh:ContentColumn — a slot beside the content body, empty unless a package fills it (the taxonomy editor's concept tree)
• ldh:TreeChildrenLoad and ldh:RowHook — client only: the children fetch for one tree node, and deferred work for one rendered row
• The value leaves — ac:FormControl, ac:PropertyListValue, ac:ValueAnnotations, ldh:TypeControl, ac:property-label, ac:object-label, ac:lang-tag, ac:ResultsTableHeaderCell, xhtml:Anchor and the unnamed mode's property row and value link. A rule for the package's own property or datatype replaces the generic one, or decorates it

The modes are documented in the Stylesheets reference. The package stylesheet reaches the browser as well: the platform composes each dataspace's client stylesheet with its package stylesheets and has the sef-compiler compile the result, so a package's rendering is the same on a direct page load and on client-side navigation.

Installing packages¶

A dataspace imports a package with a single triple in its settings:

<urn:linkeddatahub:apps/end-user> ldh:import <https://packages.linkeddatahub.com/editor/taxonomy/#this> .

That declaration is the installation. Packages are installed into the end-user dataspace of a dataspace, and writing the triple requires write access to its settings document. See the step-by-step installation guide for the user interface and command line instructions.

What the declaration does¶

From the next request onwards, the server resolves the declaration:

1. Resolves the package description from the package URI. Bundled descriptions and cached graphs are read from the graph repository; other URIs are dereferenced over HTTP.
2. Materializes the package ontology (lds:ontology) as a document under the admin dataspace's ontologies/ container, named after the package path — ontologies/editor-taxonomy/ for the taxonomy editor. The ontology is copied verbatim and the document names it as its foaf:primaryTopic; the copy is taken once, and the document is skipped on later requests.
3. Adds the package ontology to the dataspace's ontology imports closure — it is declared as an owl:imports of the namespace ontology and resolves to the materialized document. The package's classes, constructors, constraints and views become available on the ns endpoint and in the UI, and are edited in that document like the namespace ontology's own.
4. Copies the package stylesheet (ac:stylesheet) once under the platform's package root and serves it from the dataspace's own origin under /static/com/linkeddatahub/packages/, so what the instance compiles cannot change under it.
5. Composes that copy into the dataspace stylesheet with an xsl:import right after hooks.xsl, so package templates outrank the open modes' fallbacks and nothing else; the client-side stylesheet is composed the same way and compiled by the sef-compiler.

Packages are applied in the order of their URIs. A package that declares only an ontology, or only a stylesheet, contributes only that, and one whose description cannot be resolved is skipped. If the composed stylesheet fails to compile — an unreachable package stylesheet URL, for instance — the dataspace falls back to its own stylesheet.

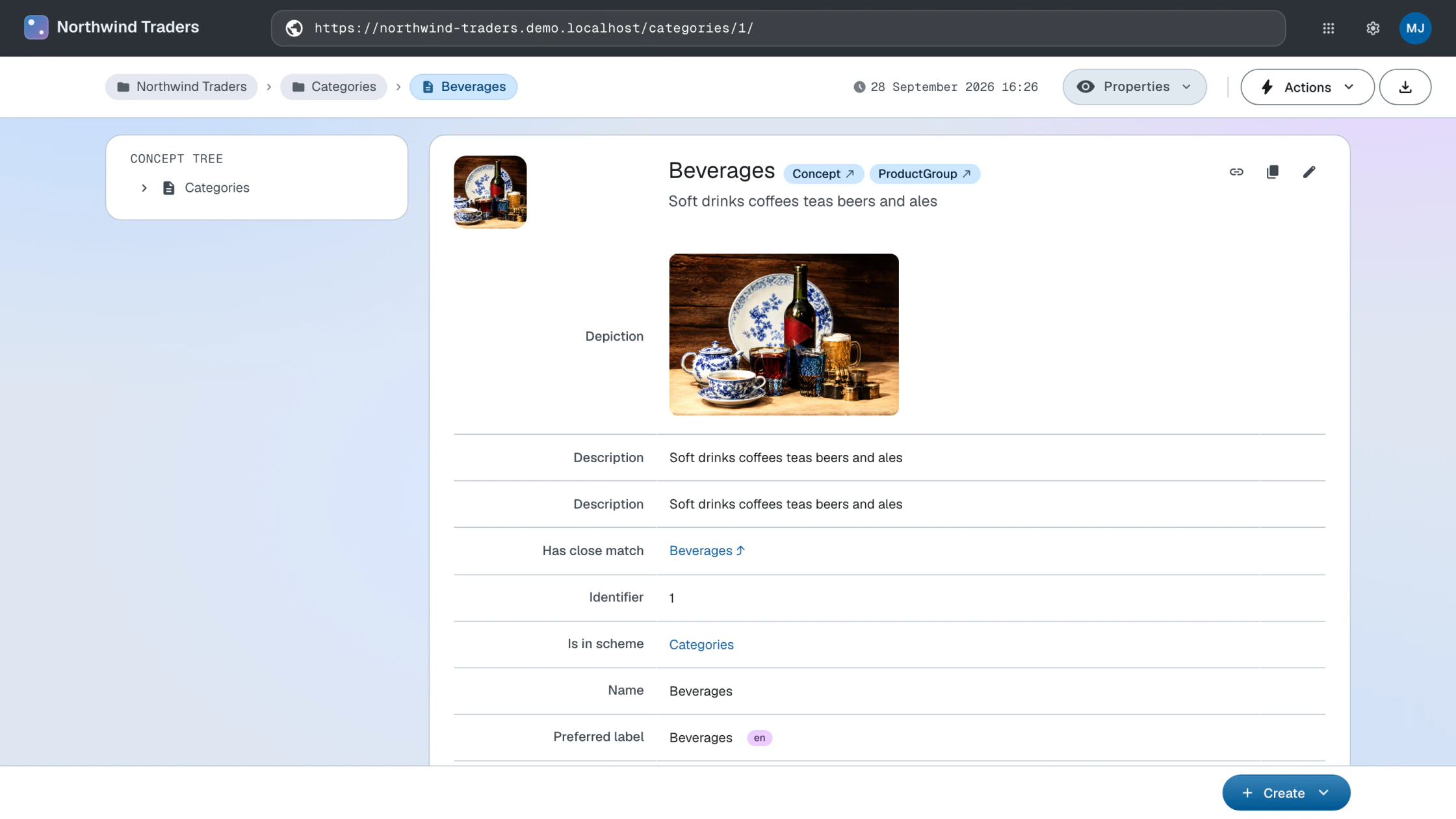

On the Northwind Traders dataspace the taxonomy editor package pays off immediately: the product categories that the UNESCO mapping import doubled as skos:Concepts pick up the package's concept rendering and views, and their mapping relations link into the UNESCO Thesaurus dataspace.

Uninstalling packages¶

Removing the ldh:import triple uninstalls the package: from the next request onwards its ontology is out of the imports closure and its stylesheet is no longer composed in.

DELETE
{
    <urn:linkeddatahub:apps/end-user> ldh:import <https://packages.linkeddatahub.com/editor/taxonomy/#this> .
}
WHERE {}

Architecture¶

Runtime composition¶

Packages are composed at request time out of the declaration, not integrated into the dataspace ahead of it:

• The dataspace settings hold one ldh:import triple per package and nothing else
• The ontology closure and the stylesheet imports are assembled from the resolved package descriptions
• Installing and uninstalling take effect on the next request — no restart, and nothing is written into the webapp: the ontology copy is a document in the admin store and the stylesheet copy lives under the package root outside the war

Creating custom packages¶

Developers can create custom packages for their own domain vocabularies: write the package ontology and stylesheet, publish the package metadata and test the installation. The Create packages guide walks through the steps.

Available packages¶

Published packages resolve from packages.linkeddatahub.com; their sources live in the LinkedDataHub-Apps repository, where each package directory contains the package ontology (ns.ttl) and its stylesheet, with the descriptor in the RDF file beside that directory.

Taxonomy Editor

Taxonomy editing on SKOS: a concept tree beside the content, hierarchy views in both assertion directions, and constructors and constraints for concepts, schemes and collections. Package URI: https://packages.linkeddatahub.com/editor/taxonomy/#this

Management¶

The packages group reads the registry and writes the ldh:import triple:

ldh packages list
ldh packages add --package https://packages.linkeddatahub.com/editor/taxonomy/#this
ldh packages remove --package https://packages.linkeddatahub.com/editor/taxonomy/#this

packages list prints one tab-separated line per package — state, URI, title — so the listing greps and cuts. The registry defaults to https://packages.linkeddatahub.com/ and --registry overrides it; it is read through the dataspace's Linked Data proxy rather than fetched directly, so list needs the dataspace URI as much as the other two do.

All three go through PATCH on the settings document, which is the live path: the change takes effect on the next request with no restart. The platform records it in settings/dataspaces.ru as a change to the configuration, the statements it removed and the ones it added, and applies that change over config/dataspaces.trig and config/system.trig on every restart. A package removed at runtime therefore stays removed, and a later edit to the configuration files still takes effect. Declaring the same ldh:import triple in config/dataspaces.trig is the alternative that lives with the rest of the configuration. packages remove is idempotent.
